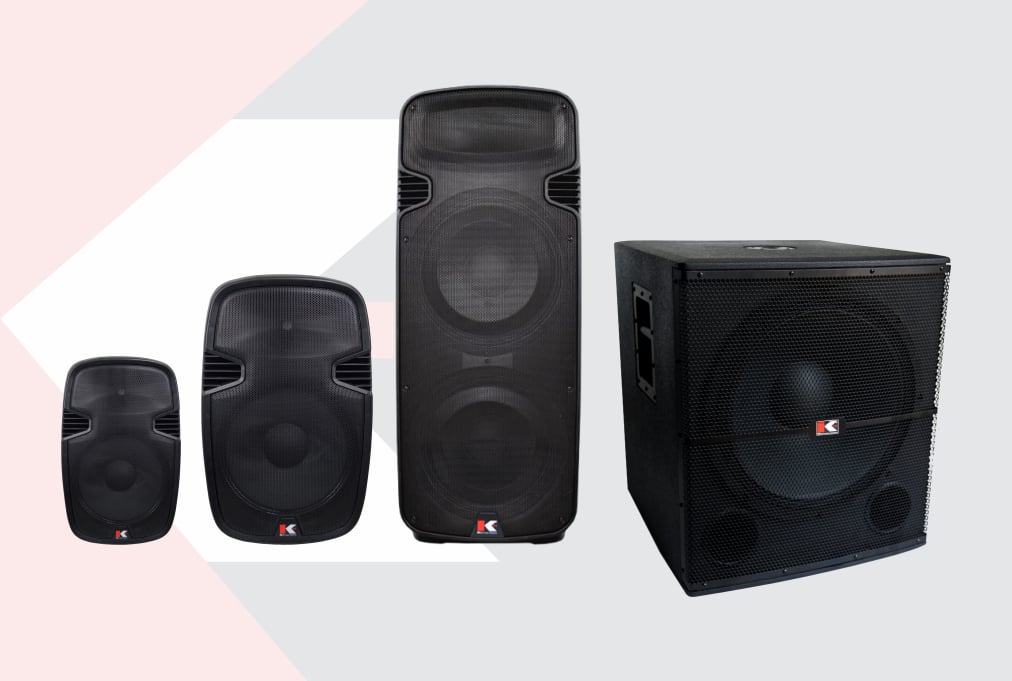

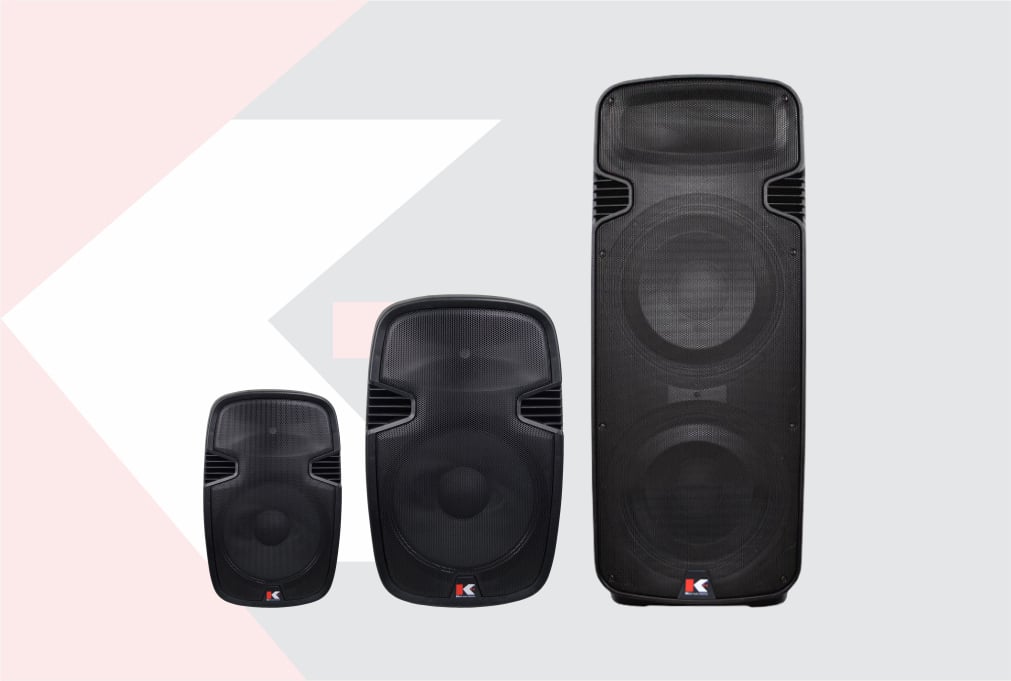

KMAS10A / KMAS15A / KMAS215A / KMAS 18A SUB

Active PA Speakers & Subwoofer

Injection-Molded Polypropylene Speakers, Optional built-in MP3 Player and Bluetooth / USB Port and SD Card, Wood Enclosure Subwoofer, Metal Grille

Download KMAS10A User's Manual

Model	KMAS10A
System Type	Active PA Speaker
Frequency response	80Hz-19kHz
Power output (RMS / Peak)	90W / 320W
Coverage Angle	H90° x V60° constant directivity horn
Max. SPL (Peak)	109dB
LF transducer	10" Woofer, 1.5" Voice coil
HF transducer	1" Exit - 1" Compression Driver
Crossover frequency	3.2KHz
Material, Finish, Color	PP, Matte black
Handles	Top x 1 & Side x 2
Pole Socket	35mm with 1-way feature (0°)
Amplifier Type	Class AB
Connectors	Input: 1 x Combo (XLR/Jack 6,35 mm) / Mp3 input: 3.5mm Jack / RCA / Bluetooth / USB / SD - Output: RCA
Dimensions	5 x 290 x 540 mm
Weight	8.9Kg

Model	KMAS15A
System Type	Active PA Speaker
Frequency response	55Hz-18KHz
Power output	80W RMS / 320W Peak
Amplification	Class AB
Max. SPL (Peak)	116dB
LF transducer	15" Woofer, 2" Voice coil
HF transducer	1" Exit - 1" Compression Driver
Dispersion	90º x 50º
Crossover frequency	3KHz
Connectors	Input: AUX / Bluetooth / USB / SD / XLR / JACK - Output: RCA
EQ	High ± 15dB / Low ± 15dB
Dimensions	482 x 740 x 395mm
Weight	18kg

Model	KMAS 215A	KMAS 18A SUB
Type	Active Speaker Cabinet	Active Subwoofer
Inputs	2 Input Channel Mic / Line with XLR / TRS	-
LF Transducer	2 x 15” Woofer, 2" Voice Coil	18" Woofer, 3" Voice Coil
Power	600W Peak	900W Peak
Amplifier	AB Class Amplifier	AB Class Amplifier
EQ	2 EQ bands for Master / Master Control	-
Enclosure Construction	ABS	Wood, Professional painted finish
Optional Digital Player	Built-In MP3 Player and Bluetooth / USB Port and SD Card	-
