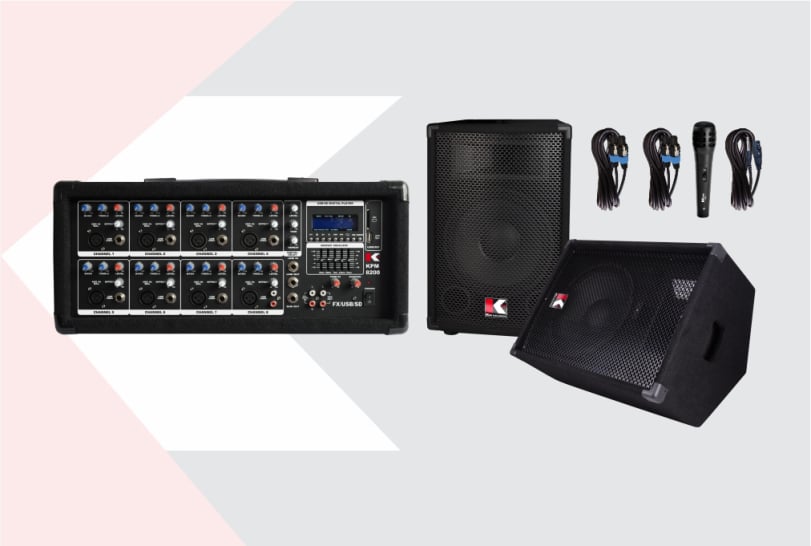

KPM Pack


Mixer & Passive Speakers

ModelKPM8200 USB-LCD
Max. Power Output2x100W @ 4 Ohm
Inputs8 XLR Mic / Line inputs
Input ImpedanceHigh EQ: ±15dB @ 12KHz / Low EQ: ±15dB @ 80Hz
Graphic Equalizer5 band graphic EQ: 100Hz / 500Hz / 1KHz / 2.5KHz / 10KHz ±12dB
2 band EQ per channel
Input Channel EQHigh EQ: ±15dB @ 12KHz / Low EQ: ±15dB @ 80Hz
Frequency Response20Hz-20KHz +1dB/-3dB @ 1W Output to 8 Ohm Speaker
Digital Time Delay (ms)140-342ms
EffectsBuilt in FX & RCA I/O
Power RequirementAC115V/230V, 50/60Hz
Type2 Way Vented Passive Speaker
Power200W Program / 400W Peak
LF Transducer12" Woofer
HF Transducer1" Driver
Impedance8 Ohms
Horn Coverage60º x 45ºV
SPL (1W/1m)93dB - 109dB Max.
Frequency Response60Hz-20KHz
Connectors2 x 1/4" Phone Jack / 2 x SPK4 Style
Cabinet ConstructionWood, Durable carpet finish
Pack IncludesKM-2 Handheld Microphone with 3m XLR to 1/4” cable & 2 x XLR to 1/4" Cable

Download User's Manual
