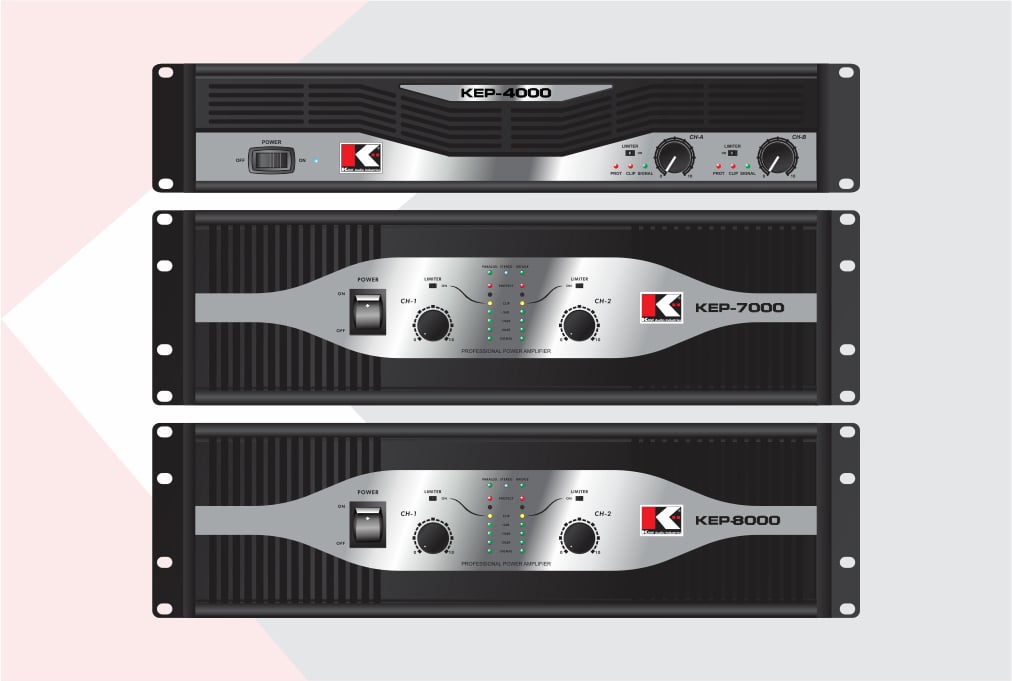

KEP4000 / KEP7000 / KEP8000
Professional Analog Power Amplifiers
Made in Taiwan
Made in Taiwan
| Model | KEP4000 | KEP7000 | KEP8000 |
|---|---|---|---|
| Power
Stereo Mode | 2 Ohms / 1KHz / 1% THD RMS: 1250W x 2
4 Ohms / 1KHz / 1% THD RMS: 800W x 2 8 Ohms / 1KHz / 1% THD RMS: 500W x 2 | 2 Ohms / 1KHz / 1% THD RMS: 1900W x 2
4 Ohms / 1KHz / 1% THD RMS: 1300W x 2 8 Ohms / 1KHz / 1% THD RMS: 800W x 2 | 2 Ohms / 1KHz / 1% THD RMS: 2400W x 2
4 Ohms / 1KHz / 1% THD RMS: 2000W x 2 8 Ohms / 1KHz / 1% THD RMS: 1200W x 2 |
| Power Bridge
Mono Mode | 4 Ohms / 1KHz / 1% THD RMS: 2200W
8 Ohms / 1KHz / 1% THD RMS: 1700W | 4 Ohms / 1KHz / 1% THD RMS: 3000W
8 Ohms / 1KHz / 1% THD RMS: 2100W | 4 Ohms / 1KHz / 1% THD RMS: 4800W
8 Ohms / 1KHz / 1% THD RMS: 4000W |
| Damping Factor | <350 | <350 | <350 |
| S/N Ratio | 100dB | 100dB | 100dB |
| Frecuency Response | 20Hz to 20KHz | 20Hz to 20KHz | 20Hz to 20KHz |
| Crossover | Built-in for subwoofer | Built-in for subwoofer | Built-in for subwoofer |
| Cooling | Dual fan cooling System | Dual fan cooling System | Dual fan cooling System |
| Dimensions
(H x W x H) | 3.5" x 19" x 15,9"
(88 x 483 x 407mm) | 5.25" x 19" x 15,9"
(133 x 483 x 407mm) | 5.25" x 19" x 15,9"
(133cm x 483cm x 462mm) |
| Net weigth | 15.9 Kg (31Lb) | 28 Kg (61.6Lb) | 33 Kg (72.8Lb) |
