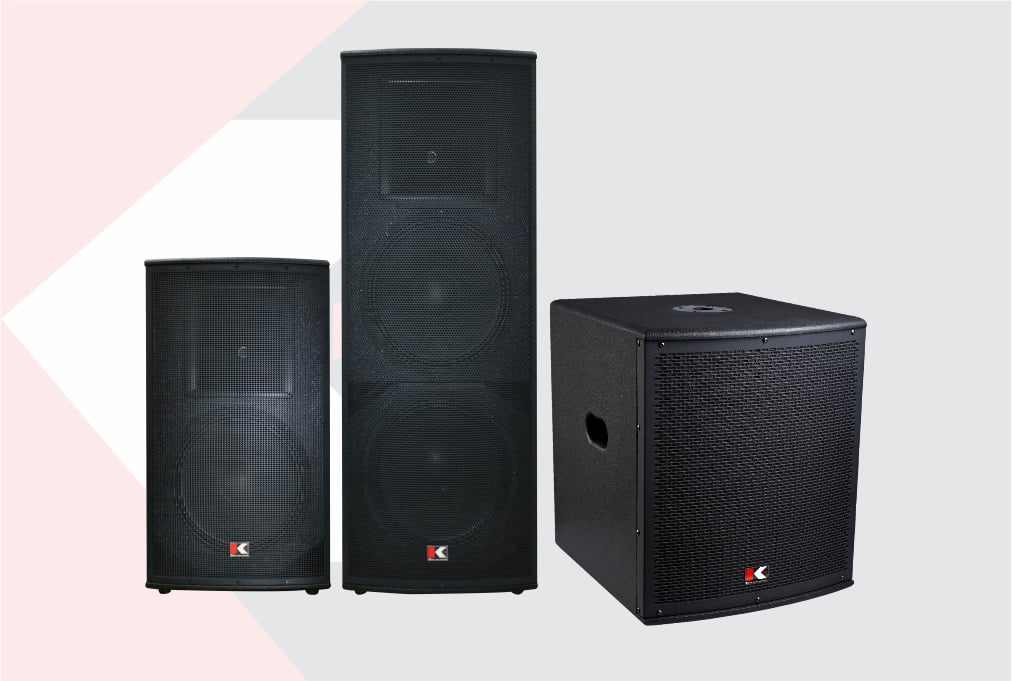

KPE115A / KPE215A / KPE118A SUB
Active Speakers also available Passive
Painted Wood Enclosures, 2 x Handles, Metal Grille, Rubber feet
Painted Wood Enclosures, 2 x Handles, Metal Grille, Rubber feet
| Model | KPE115A | KPE215A | KPE118A SUB |
|---|---|---|---|
| System Type | Painted Wood
Active Speaker | Painted Wood
Active Speaker | Painted Wood Active Subwoofer
8 Ohms with Polarity inverter |
| Power | 350W Continuous / 750W Program /
1500W Peak | 750W Continuous / 1500W Program / 2800W Peak | 700W Continuous / 1400W Program / 2800W Peak |
| LF Transducer | 15" Woofer, 2.5" Voice coil | 2 x 15" Woofer, 2.5" Voice coil | 18" Woofer, 4" Voice coil |
| HF Transducer | 1" Exit - 1 .75" Compression Driver | 1" Exit - 1 .75" Compression Driver | - |
| Line - INPUT | 3-pin XRL or 6.3mm JACK | 3-pin XRL or 6.3mm JACK | XLR |
| Line - OUTPUT | 3-pin XLR | 3-pin XLR | - |
| Max SPL | 122dB | 125dB | 128dB |
| Frequency range | 45Hz - 20KHz (10dB) | 40Hz - 20KHz (10dB) | 30Hz - 150Hz |
| Power Supply | 100 - 240V AC, 50 / 60Hz | 100 - 240V AC, 50 / 60Hz | 100 - 240V AC, 50 / 60Hz |
| Dimension | 550 x 518 x 890mm | 550 x 518 x 1315mm | 625 x 615 x 750mm |
| Weight | 32Kg | 42.5Kg | 34Kg |
