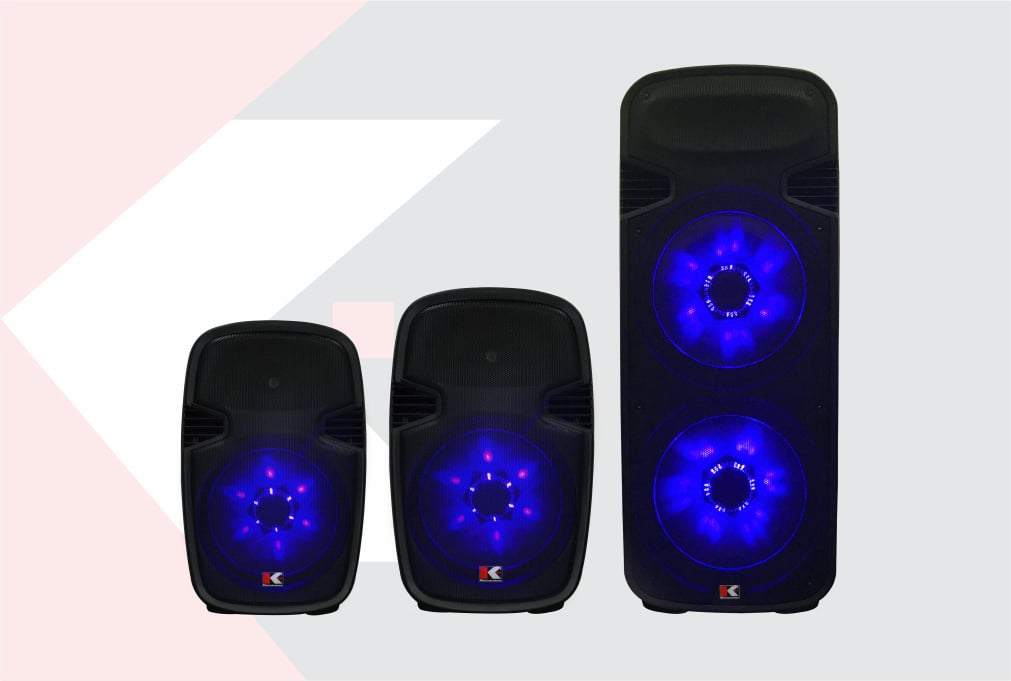

RAVE 112A / RAVE 115A / RAVE 215A
Active PA Speakers, Party Ready!!
ABS Enclosures, 2 x Handles, Metal Grille, Rubber feet
ABS Enclosures, 2 x Handles, Metal Grille, Rubber feet
| Model | Rave 112A | Rave 115A | Rave 215A |
|---|---|---|---|
| System Type | Active PA Speaker | Active PA Speaker | Active PA Speaker |
| Frequency response | 65Hz-19KHz | 55Hz-18KHz | 50Hz-18KHz |
| Power output (RMS / Peak) | 150W / 600W | 150W / 600W | 150W / 600W |
| Amplification | Class AB | Class AB | Class AB |
| Max. SPL (peak) | 114dB | 116dB | 118dB |
| LF transducer | 12" Woofer, 1.5" Voice coil | 15" Woofer, 2" Voice coil | 2 x 15" Woofer, 2" Voice coil |
| HF transducer | 1" Exit - 1" Compression Driver | 1" Exit - 1" Compression Driver | 1" Exit - 1" Compression Driver |
| Dispersion | 90°x 50° | 90°x 50° | 90°x 50° |
| Crossover frequency | 3.0KHz | 3.0KHz | 2.5KHz |
| Connectors | Input: AUX / Bluetooth / USB / SD / XLR / Jack, Output: XLR | Input: AUX / Bluetooth / USB / SD / XLR / Jack, Output: XLR | Input: AUX / Bluetooth / USB / SD / XLR / Jack, Output: XLR |
| LED Light | LED program lighting with
switch on/off | LED program lighting with
switch on/off | LED program lighting with
switch on/off |
| Dimension | 420 x 633 x 345mm | 482 x 740 x 395mm | 490 x 1150 x 400mm |
| Weight | 12.5kg | 18kg | 24kg |
