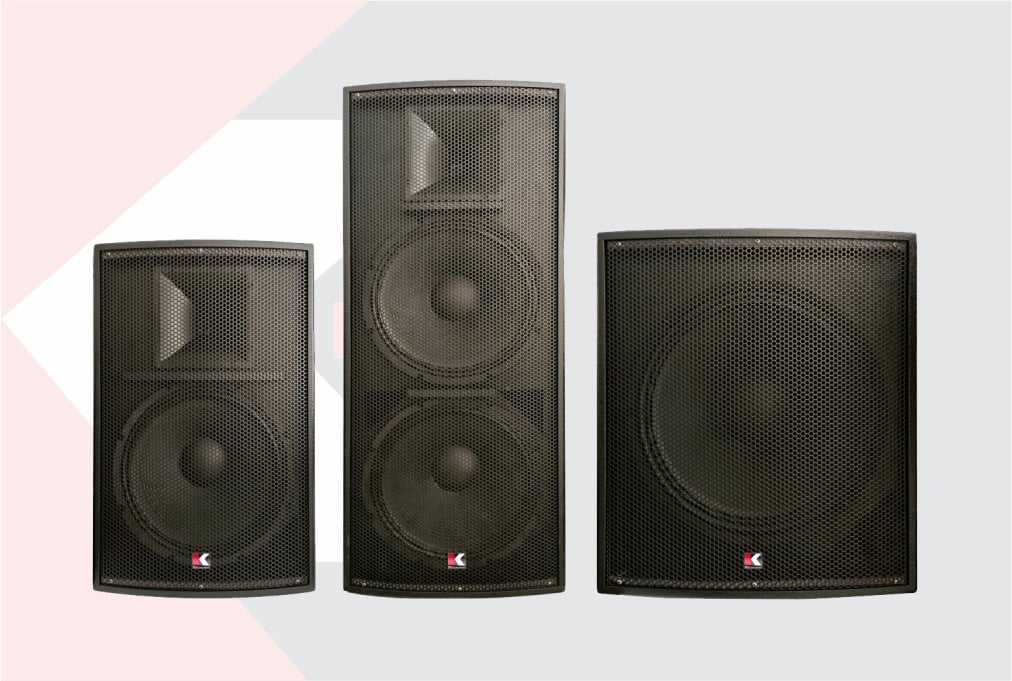

SONO 112 / SONO 115 /SONO 118 SUB
2-Way Vented Passive Speakers & Subwoofer
MDF cabinet, resistant black paint, metal grille, rubber feet, two handles
MDF cabinet, resistant black paint, metal grille, rubber feet, two handles
| Model | Sono 115 | Sono 215 |
|---|---|---|
| System Type | 2-Way Vented Speaker | 2-Way Vented Speaker |
| LF transducer | 15" Woofer | 2 x 15" Woofer |
| HF transducer | 1" Driver, 1" Voice Coil | 1" Driver, 1" Voice Coil |
| Frequency Response | 55Hz ~ 20KHz ±6dB | 55Hz ~ 20KHz ±6dB |
| Nominal Impedance | 8 Ohms | 4 Ohms |
| Max SPL | 96dB / 122dB | 97dB / 126dB |
| Power Rating | 400W Program / 800W Peak | 800W Program / 1600W Peak |
| Input Connectors | 1 x NL4 (Pin 1 +; Pin 1-) 2 x 1/4" Jack | 1 x NL4 (Pin 1 +; Pin 1-) 2 x 1/4" Jack |
| Enclosure Construction | MDF cabinet, resistant black paint, metal grille, rubber feet, two handles | MDF cabinet, resistant black paint, metal grille, rubber feet, two handles |
| Dimensions (HxWxD) | 561 x 551 x 744mm | 561 x 551 x 1188mm |
| Net Weight | 23Kg | 35.21Kg |
| Model | Sono 118 Sub |
|---|---|
| System Type | Passive Subwoofer |
| Transducer Low | 1 x 18" Premium Woofer |
| Frequency Response | 40Hz ~ 1KHz (±6dB) |
| Nominal Impedance | 8 Ohms |
| Max SPL | 99dB / 127dB |
| Power Rating | 700W Program / 1400W Peak |
| Enclosure Construction | MDF cabinet, resistant black paint, metal grille, rubber feet, two handles |
| Dimensions (HxWxD) | 718 x 688 x 718mm |
| Net Weight | 38.07Kg |
