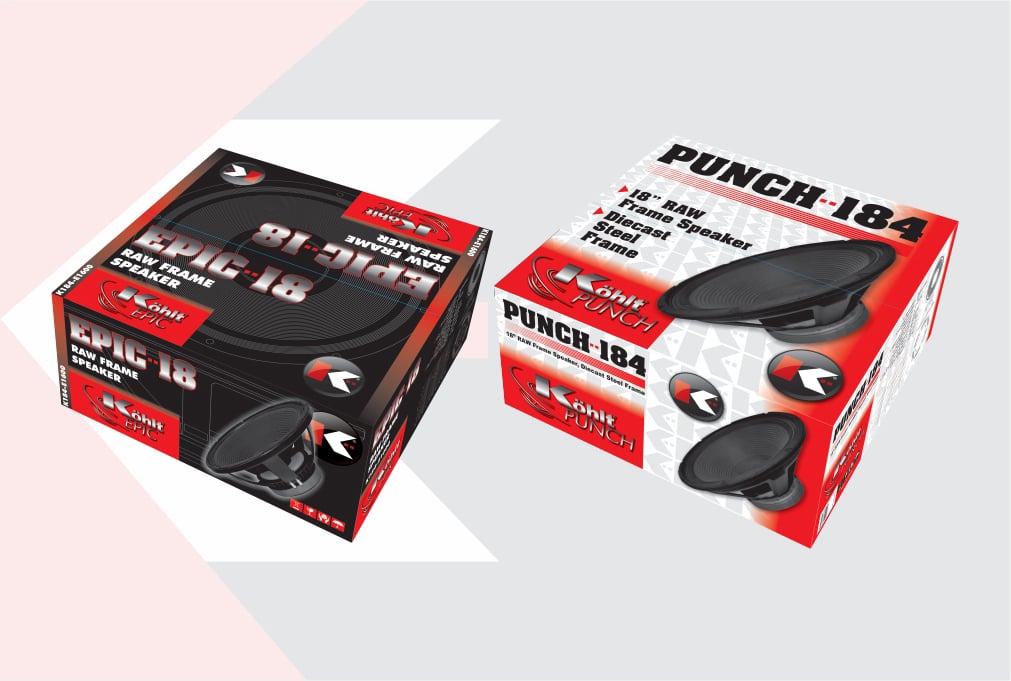

epic - punch raw speakers

Epic / Punch Series

RAW Frame Woofers & Drivers

Download EPIC & PUNCH Specs Sheet
ModelEPIC 8EPIC 10EPIC 12EPIC 15EPIC 18EPIC 1.75EPIC 3EPIC 4
TypeWoofer Woofer Woofer Woofer Woofer DriverDriverDriver
Power (AES) 200
250
450
700
800
60
110
160
Power (Peak) 400
500
900
1400
1600
120
220
320
Freq.
Resp. (Hz) 		95-6000 55-350042-300095-37-150030-12001000-18000600-18000 18000
SPL (dB) 95
95
96
97
97
107
108108
Imp.
(Ohm) 		8
8
8
8
8
8
8
8
Voice coil
dimen. (") 		2
2.5
3
4
4
1.75
3
4
Magnet
weight (Oz) 		56.3
54
76
121.3
121.5
30
100
100
Die Cast
Frame 		ALALALALALALALAL
Overall
Dimen. (mm) 		225
262
316
374
440
120
170
220
Fits Enclo-sure
Hole (mm) 		190
230
282
354
422
-
-
-
Mounting
Depth (mm) 		102
124
136
168
197
62
64
130
Weight (kg)4.2
6
7.1
11
13
2.1
4.5
10.2
Throat -
-
-
-
-
1" Throat Bolt
2 x M6 Holes
180 on 76mm Ø		1" Throat Bolt
2 x M6 Holes
180 on 76mm Ø		1" Throat Bolt
2 x M6 Holes
180 on 76mm Ø
ModelPUNCH 815PUNCH 1020PUNCH 1220PUNCH 1225PUNCH 153PUNCH 154PUNCH 184
TypeWoofer Woofer Woofer Woofer Woofer Woofer Woofer
Power (AES) 160
260
300
350
450
500
600
Power (Peak) 320
520
600
700
900
1000
1200
Freq.
Resp. (Hz) 		70-3500 60-3500 760-3500 50-3500 43-3500 40-3500 30-3500
SPL (dB) 94
95
95
96
96
96
97
Imp.
(Ohm) 		8
8
8
8
8
8
8
Voice coil
dimen. (") 		1.5
2
2
2.36
3
4
4
Magnet
weight (Oz) 		39
39
44
46
60
100
100
Die Cast
Frame 		steelsteelsteelsteelsteelsteelsteel
Overall
Dimen. (mm) 		203
259
312
312
387
387
460
Fits Enclo-sure
Hole (mm) 		182
232
277
277
352
352
424
Mounting
Depth (mm) 		92
115
126
126
158
158
195
Weight (kg)3.2
3.5
5.5
6.5
7
8.5
10.5
