OXP10A DSP /
OXP12A DSP /
OXP15A DSP

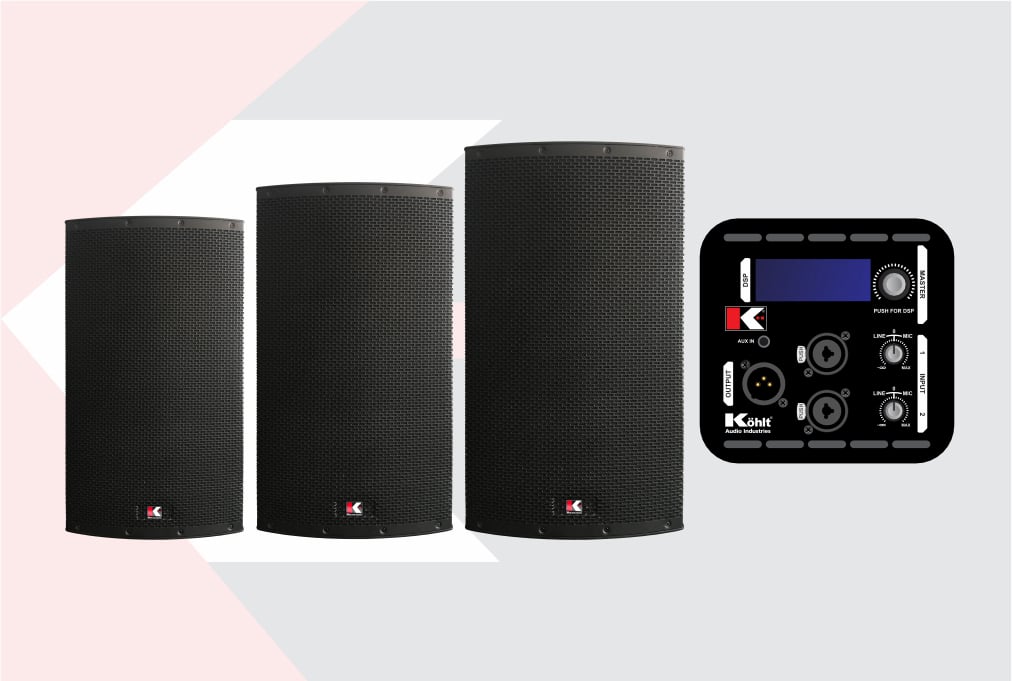

Active PA Speakers with DSP Processor
Painted Wood Enclosures, 2 x Handles, Metal Grille, Rubber feet
Painted Wood Enclosures, 2 x Handles, Metal Grille, Rubber feet
| Model | OXP 10A DSP | OXP 12A DSP | OXP 15A DSP |
|---|---|---|---|
| System Type | Active PA Speaker | Active PA Speaker | Active PA Speaker |
| Frequency response | 58Hz-19KHz | 53Hz-19KHz | 46Hz-19KHz |
| Power Output LF
(Continuous / Program / Peak) | 200W / 400W / 800W | 350W / 700W / 1400W | 450W / 900W / 1800W |
| Power Output HF
(Continuous / Program / Peak) | 50W / 100W / 200W | 50W / 100W / 200W | 50W / 100W / 200W |
| Power Total (Continuous / Peak) | 250W / 1000W | 300W / 1200W | 500W / 2000W |
| Power Output Total (Continuous / Program / Peak) | 250W / 500W / 1000W | 400W / 800W / 1600W | 500W / 1000W / 2000W |
| Coverage
Angle | H 90° x V 60° constant directivity horn | H 90° x V 60° constant directivity horn | H 90° x V 60° constant directivity horn |
| Max SPL | 132dB | 134dB | 136dB |
| Transducer
LF | 10" Woofer, 2" Voice Coil | 12" Woofer, 2.36" Voice Coil | 15" Woofer, 3" Voice Coil |
| Transducer
HF | 1" Exit / 1.35" Voice Coil Compression Driver | 1" Exit / 1.35" Voice Coil Compression Driver | 1" Exit / 1.35" Voice Coil Compression Driver |
| Crossover Frequency | 1.8 KHz | 1.8 KHz | 1.5 KHz |
| Connectors | Input: 3.5mm Jack / XLR / 6.35mm TRS combo; Output: XLR | Input: 3.5mm Jack / XLR / 6.35mm TRS combo; Output: XLR | Input: 3.5mm Jack / XLR / 6.35mm TRS combo; Output: XLR |
| Handles | 1 x Top + 1 x Side | 1 x Top + 1 x Side | 1 x Top + 1 x Side |
| Pole Socket | 35mm with 1-way feature (0°) | 35mm with 1-way feature (0°) | 35mm with 1-way feature (0°) |
